block_ciphers.h File Reference

Abstraction Layer. More...

#include "ordo/primitives/block_ciphers/block_params.h"

Include dependency graph for block_ciphers.h:

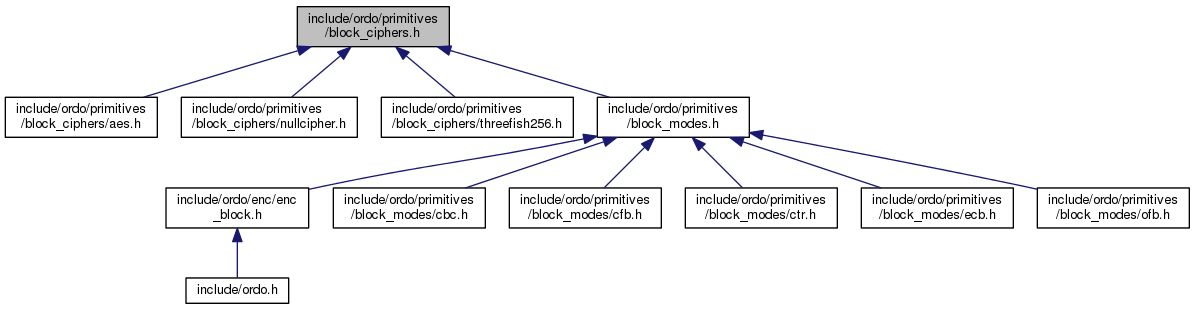

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
ORDO_PUBLIC int	block_init (struct BLOCK_STATE *state, const void *key, size_t key_len, prim_t primitive, const void *params)
ORDO_PUBLIC void	block_forward (const struct BLOCK_STATE *state, void *block)
ORDO_PUBLIC void	block_inverse (const struct BLOCK_STATE *state, void *block)
ORDO_PUBLIC void	block_final (struct BLOCK_STATE *state)
ORDO_PUBLIC size_t	block_query (prim_t primitive, int query, size_t value)
ORDO_PUBLIC size_t	block_bsize (void)

Detailed Description

Abstraction Layer.

This abstraction layer declares all the block ciphers, and also makes them available to higher level modules. This does not actually do encryption at all but simply abstracts block cipher permutations, the encryption modules are in the enc folder: enc_block.h.

Function Documentation

ORDO_PUBLIC int block_init	(	struct BLOCK_STATE *	state,
		const void *	key,
		size_t	key_len,
		prim_t	primitive,
		const void *	params
	)

Initializes a block cipher state.

Parameters

[in,out]	state	A block cipher state.
[in]	key	The cryptographic key to use.
[in]	key_len	The length, in bytes, of the key.
[in]	primitive	A block cipher primitive.
[in]	params	Block cipher specific parameters.

Returns

ORDO_SUCCESS on success, else an error code.

ORDO_PUBLIC void block_forward	(	const struct BLOCK_STATE *	state,
		void *	block
	)

Applies a block cipher's forward permutation.

Parameters

[in]	state	An initialized block cipher state.
[in,out]	block	A data block to permute.

Remarks

The block should be the size of the block cipher's block size.

ORDO_PUBLIC void block_inverse	(	const struct BLOCK_STATE *	state,
		void *	block
	)

Applies a block cipher's inverse permutation.

Parameters

[in]	state	An initialized block cipher state.
[in,out]	block	A data block to permute.

Remarks

The block should be the size of the block cipher's block size.

ORDO_PUBLIC void block_final

(

struct BLOCK_STATE *

state

)

Finalizes a block cipher state.

Parameters

[in,out]

state

A block cipher state.

ORDO_PUBLIC size_t block_query	(	prim_t	primitive,
		int	query,
		size_t	value
	)

Queries a block cipher for suitable parameters.

Parameters

[in]	primitive	A block cipher primitive.
[in]	query	A query code.
[in]	value	A suggested value.

Returns

A suitable parameter of type query based on value.

See Also

query.h

ORDO_PUBLIC size_t block_bsize

(

void

)

Gets the size in bytes of a BLOCK_STATE.

Returns

The size in bytes of the structure.

Remarks

Binary compatibility layer.
