block_modes.h File Reference

Abstraction Layer. More...

#include "ordo/primitives/block_modes/mode_params.h"
#include "ordo/primitives/block_ciphers.h"

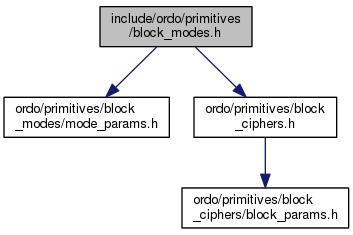

Include dependency graph for block_modes.h:

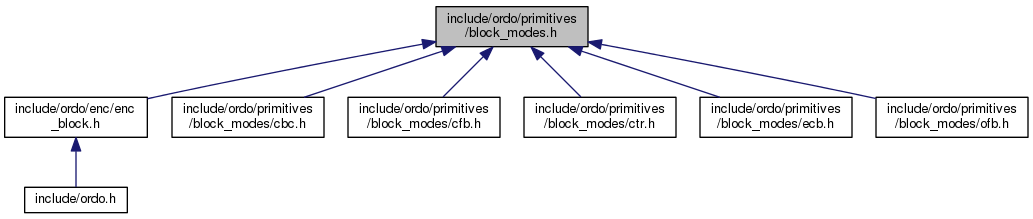

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
ORDO_PUBLIC int	block_mode_init (struct BLOCK_MODE_STATE *state, struct BLOCK_STATE *cipher_state, const void *iv, size_t iv_len, int direction, prim_t primitive, const void *params)
ORDO_PUBLIC void	block_mode_update (struct BLOCK_MODE_STATE *state, struct BLOCK_STATE *cipher_state, const void *in, size_t in_len, void *out, size_t *out_len)
ORDO_PUBLIC int	block_mode_final (struct BLOCK_MODE_STATE *state, struct BLOCK_STATE *cipher_state, void *out, size_t *out_len)
ORDO_PUBLIC size_t	block_mode_query (prim_t mode, prim_t cipher, int query, size_t value)
ORDO_PUBLIC size_t	block_mode_bsize (void)

Detailed Description

Abstraction Layer.

This abstraction layer declares all the block modes of operation in the library, making them available to higher level modules.

Note "block cipher mode of operation" is shortened to "block mode" in code and documentation to minimize noise and redundancy.

Function Documentation

ORDO_PUBLIC int block_mode_init	(	struct BLOCK_MODE_STATE *	state,
		struct BLOCK_STATE *	cipher_state,
		const void *	iv,
		size_t	iv_len,
		int	direction,
		prim_t	primitive,
		const void *	params
	)

Initializes a block mode state.

Parameters

[in,out]	state	A block mode state.
[in]	cipher_state	A block cipher state.
[in]	iv	The initialization vector to use.
[in]	iv_len	The length, in bytes, of the IV.
[in]	direction	1 for encryption, 0 for decryption.
[in]	primitive	A block mode primitive.
[in]	params	Block mode specific parameters.

Returns

ORDO_SUCCESS on success, else an error code.

ORDO_PUBLIC void block_mode_update	(	struct BLOCK_MODE_STATE *	state,
		struct BLOCK_STATE *	cipher_state,
		const void *	in,
		size_t	in_len,
		void *	out,
		size_t *	out_len
	)

Encrypts or decrypts a buffer.

Parameters

[in,out]	state	A block mode state.
[in]	cipher_state	A block cipher state.
[in]	in	The input buffer.
[in]	in_len	The length, in bytes, of the input.
[out]	out	The output buffer.
[out]	out_len	A pointer to an integer to which to write the number of output bytes that can be returned to the user. Remaining input data has not been ignored and should not be passed again.

Warning

In-place encryption (by letting in be the same buffer as out) is always supported, however the buffers may not overlap.

ORDO_PUBLIC int block_mode_final	(	struct BLOCK_MODE_STATE *	state,
		struct BLOCK_STATE *	cipher_state,
		void *	out,
		size_t *	out_len
	)

Finalizes a block mode state.

Parameters

[in,out]	state	A block mode state.
[in]	cipher_state	A block cipher state.
[out]	out	The output buffer.
[out]	out_len	A pointer to an integer to which to store the number of bytes written to out.

Returns

ORDO_SUCCESS on success, else an error code.

Remarks

This function will return any input bytes which were not returned by calls to block_mode_update() (in the correct order).

ORDO_PUBLIC size_t block_mode_query	(	prim_t	mode,
		prim_t	cipher,
		int	query,
		size_t	value
	)

Queries a block mode for suitable parameters.

Parameters

[in]	mode	A block mode primitive.
[in]	cipher	A block cipher primitive.
[in]	query	A query code.
[in]	value	A suggested value.

Returns

A suitable parameter of type query based on value.

See Also

query.h

ORDO_PUBLIC size_t block_mode_bsize

(

void

)

Gets the size in bytes of a BLOCK_MODE_STATE.

Returns

The size in bytes of the structure.

Remarks

Binary compatibility layer.
